12 inch Extra Length Soft Jaws
Description
The extra-length soft jaws are specifically designed for CNC lathe operations involving large-diameter workpieces or components requiring extended clamping reach.Their elongated profile provides increased contact surface and stable support, effectively minimizing deformation during machining and enhancing overall precision.
This type is ideal for applications where standard jaw dimensions are insufficient to securely grip oversized parts.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

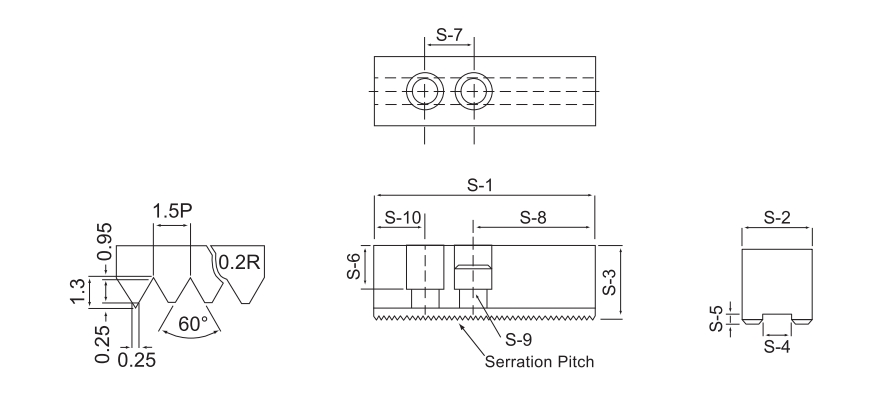

Dimensions

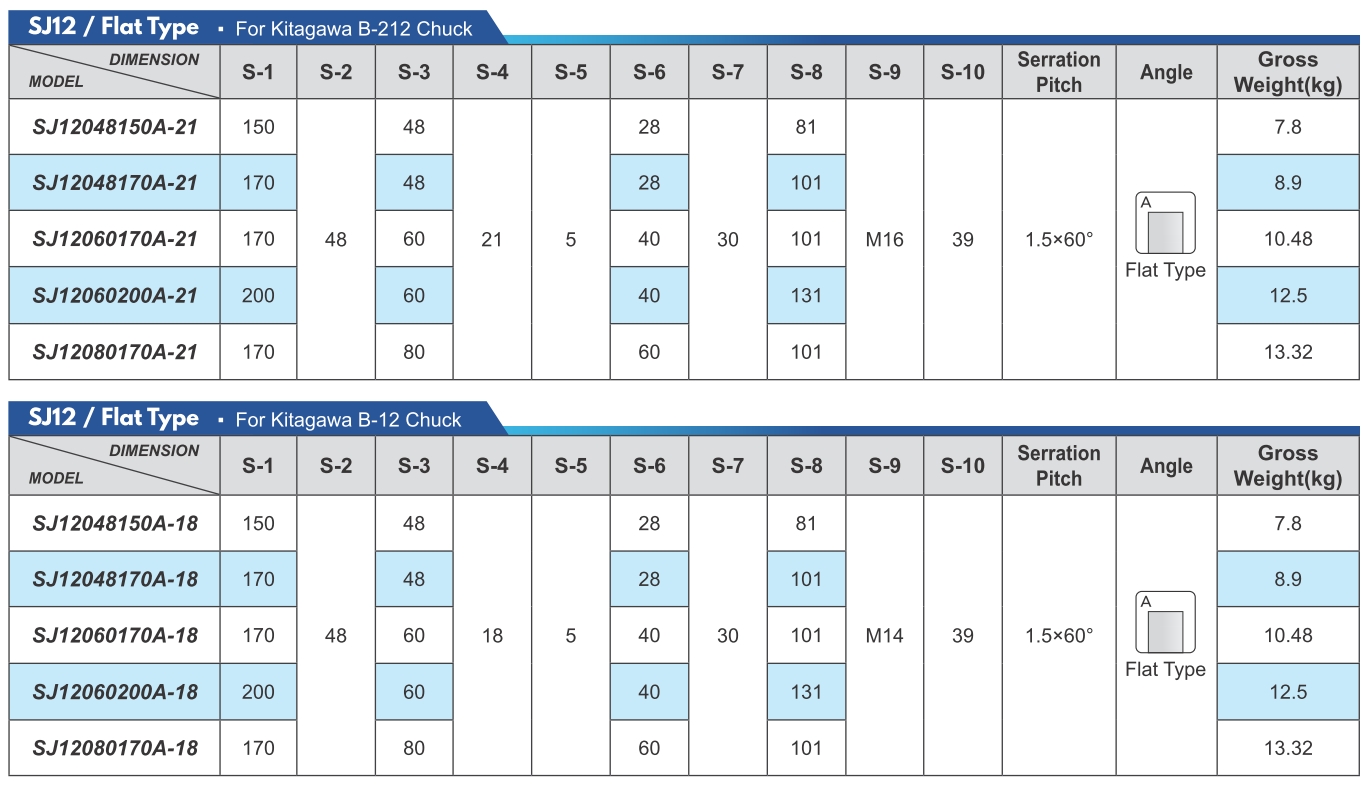

Specifications
UNIT: mm
