8 inch Extra Length Soft Jaws
Description
The 8-inch extra-length soft jaws are designed for CNC lathe applications requiring secure clamping of large-diameter workpieces.particularly suitable for components with extended outer diameters, providing increased jaw coverage and stable support during machining.
For instance, a workpiece with an outer diameter of Ø250 mm is best matched with 8-inch soft jaws featuring an extra length of 150 mm.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

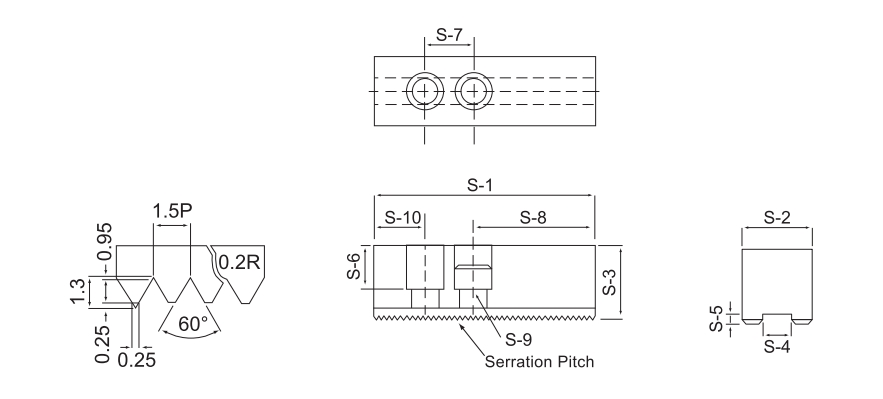

Dimensions

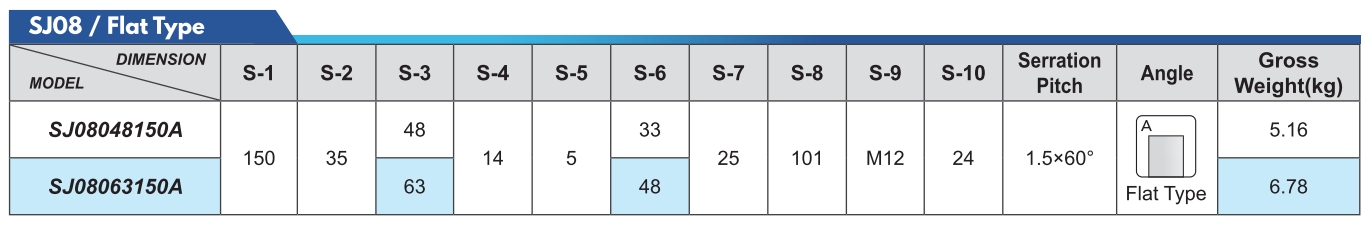

Specifications
UNIT: mm
