10 inch Extra Width Soft Jaws
Description
Engineered for CNC lathe applications, extra-width soft jaws provide optimal clamping for thin-walled, easily deformable workpieces or components requiring an extended gripping surface.Their widened design minimizes clamping-induced deformation and significantly improves machining precision, making them ideal for high-quality operations.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

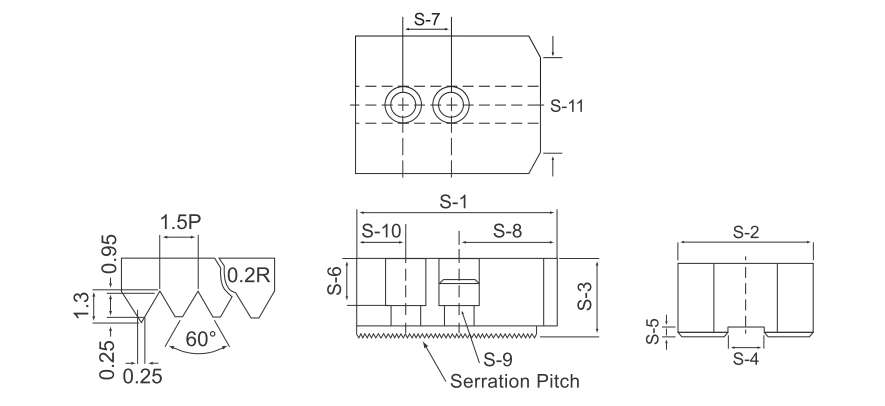

Dimensions

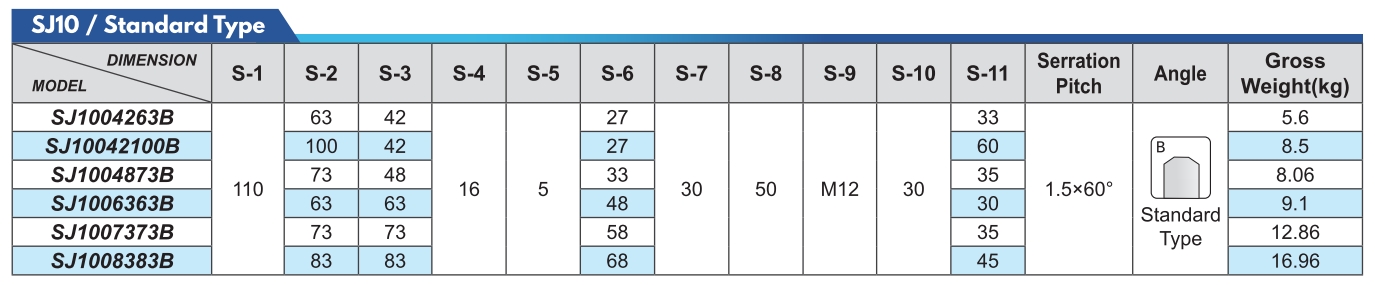

Specifications
UNIT: mm
