8 inch Extra Width Soft Jaws
Description
The 8-inch extra-width soft jaws are designed for use on CNC lathes. It is an idea for clamping thin, easily deformable workpieces or components with a wider clamping range.This design helps minimize deformation and enhance machining accuracy.
For example, a workpiece with an outer diameter of Ø60 mm typically requires soft jaws with an extra width of 60 mm.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: 120° Standard type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

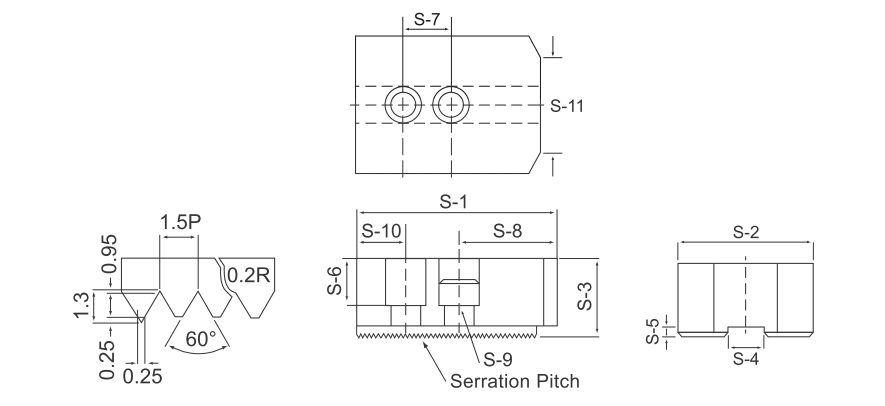

Dimensions
Specifications
UNIT: mm
