4 inch Extra Height Soft Jaws
Description
The 4-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes. Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: 120° Pointed type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

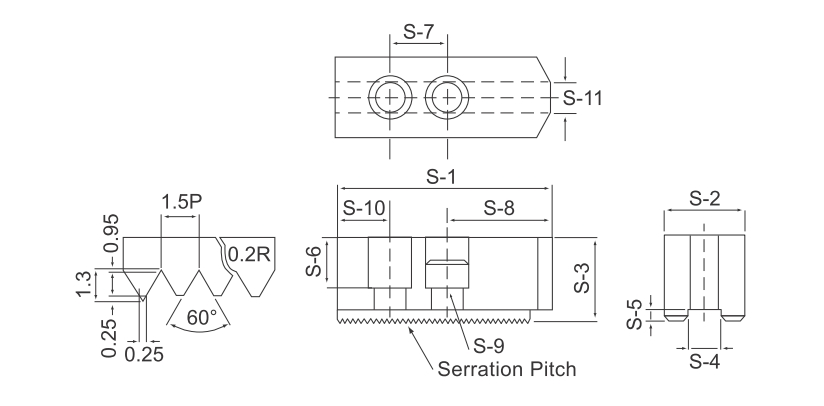

Dimensions

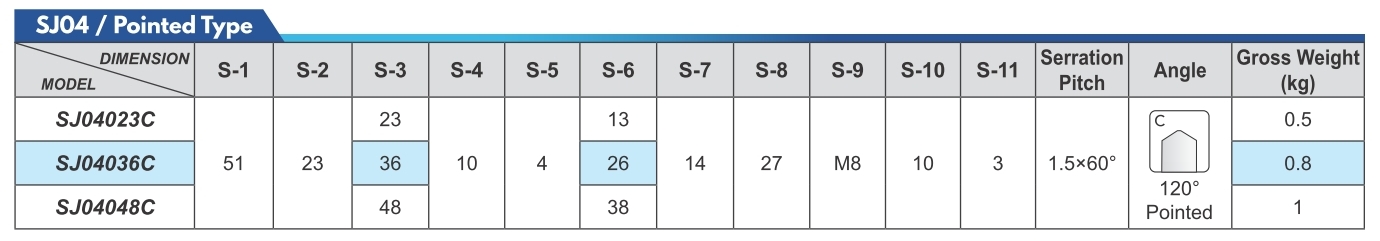

Specifications
UNIT: mm
