1.5mm × 60° Aluminum Soft Jaws
Description
Aluminum soft jaws (1.5mm × 60°) are designed for use with CNC lathes. Depending on specific machining requirements, customers can select from diverse sizes and user options, reducing the need for unnecessary adjustments.Feature
- Materials: Aluminum 6061 T6
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

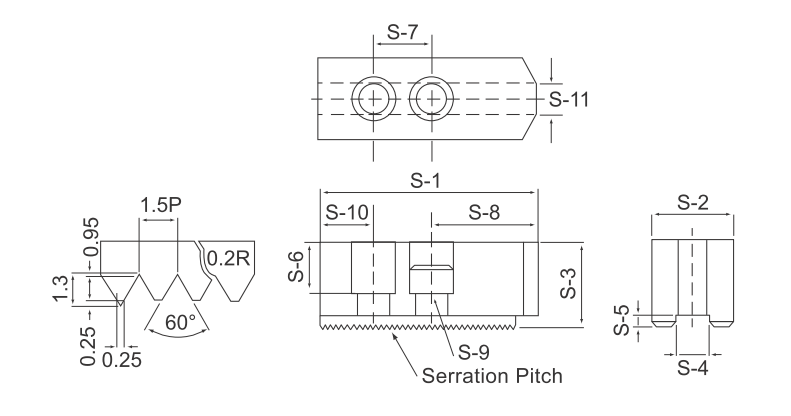

Dimensions

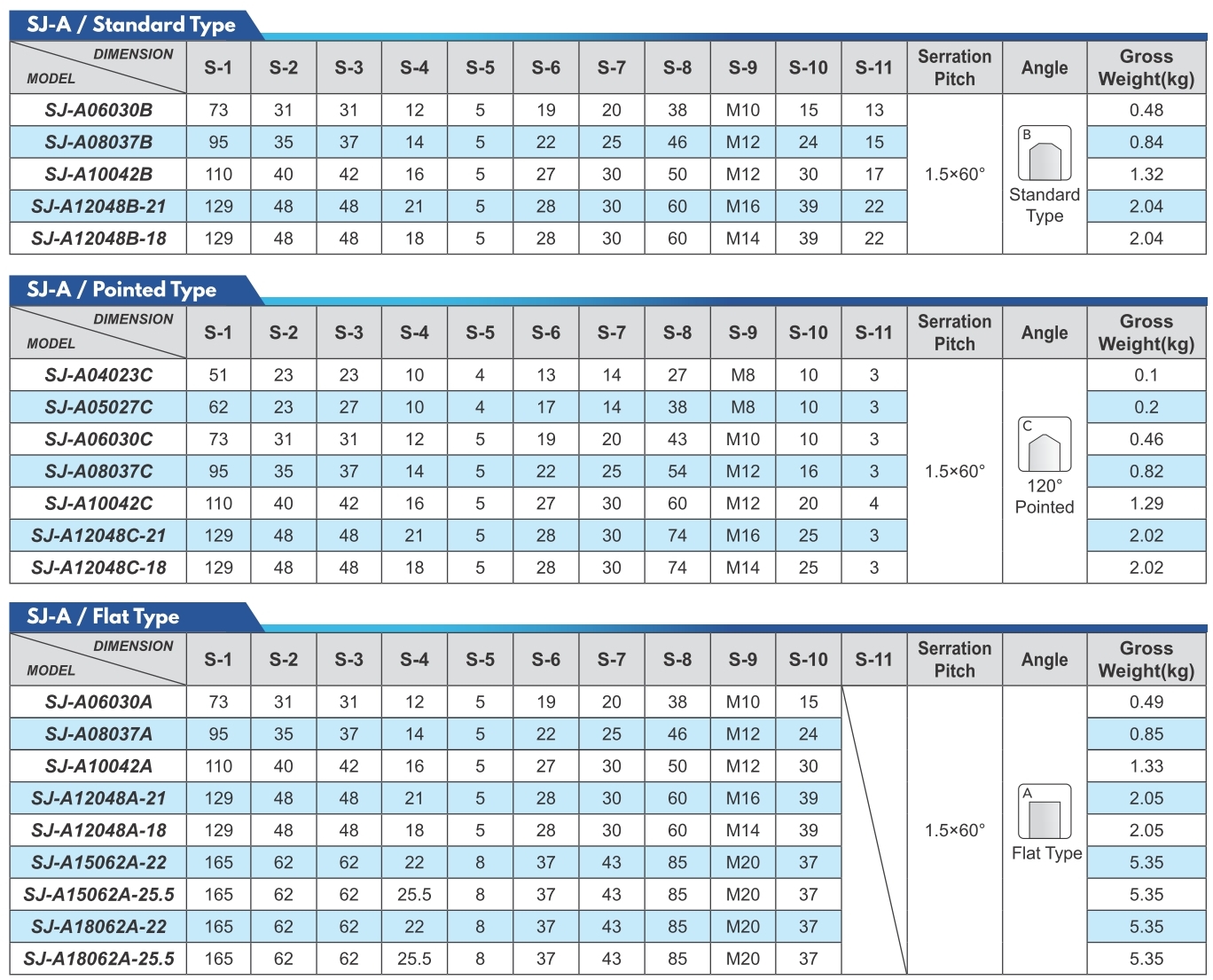

Specifications
UNIT: mm
