PRODUCTS
1/16"×90° Standard Soft Jaws
Description
Standard soft jaws (1/16" × 90°) are designed for use with CNC lathes. Depending on specific machining requirements, customers can select from diverse sizes and user options, reducing the need for unnecessary adjustments.Feature
- Materials: S45C
- Serration Pitch：1/16" × 90°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.

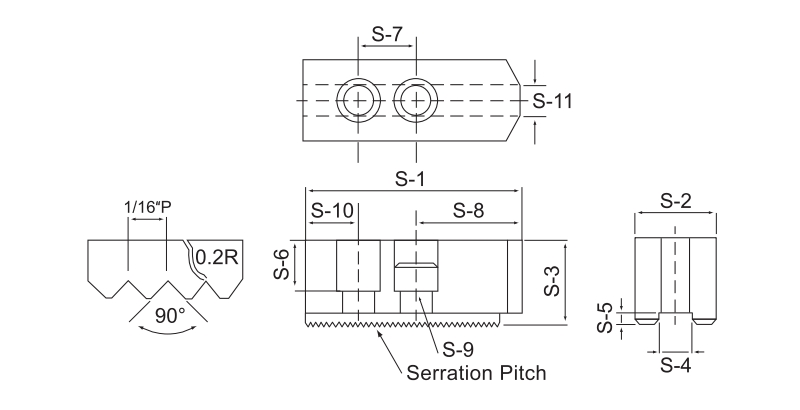

Dimensions

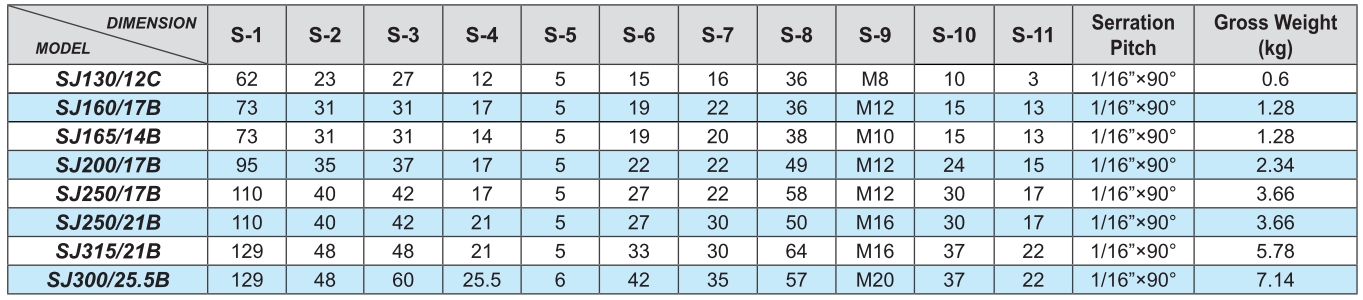

Specifications
UNIT: mm
