3.0mmx60° Hard Jaws

• ADD TO INQUIRY
• CATALOGUE DOWNLOAD

Description

The hard jaws (3.0mm × 60°) are designed for CNC lathes. The clamping step features hardened serrations that securely grip the workpiece while minimizing surface scratches or damage.

Feature

• Material: SNCM220 / SAE8620
• Serration Pitch: 3.0mm × 60°
• Hardness: HRC 58° - 60°
• Chuck Compatibility: Suitable for KITAGAWA and other global brands

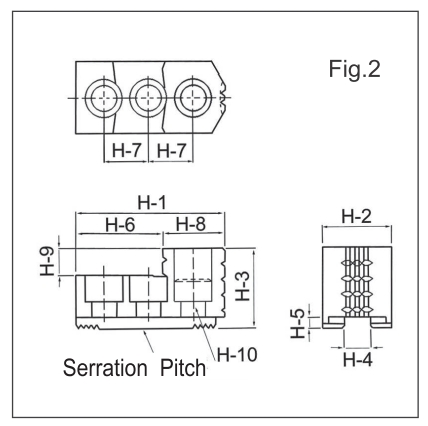

Dimensions

Specifications

UNIT: mm

Model	H-1	H-2	H-3	H-4	H-5	H-6	H-7	H-8	H-9	H-10	Serration Pitch	Gross Weight (kg)	Reference Drawing
HJ21	159	80	90	25	9	104	50	55	40	M20	3.0mm×60°	14.5	Fig.2
HJ24	159	80	90	25	9	104	50	55	40	M20	3.0mm×60°	14.5	Fig.2
