5 inch Soft Jaws -Extra Height Type

The 5-inch extra height soft jaws are designed for CNC lathe applications, particularly for longer workpieces.
For example, a 100mm-long workpiece typically requires jaws over 70mm in height to ensure greater machining stability and accuracy.
Models with heights over 100mm are also available to meet advanced clamping requirements.

• Materials: S45C

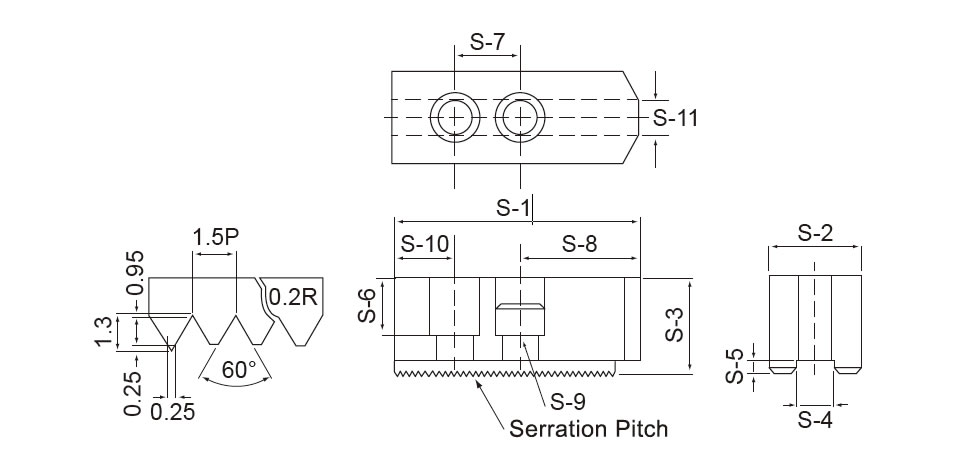

• Serration Pitch：1.5mm×60°
• To conform to the chucks from Kitagawa and other global brands
• Angle type: 120° Pointed type
• For sizes not listed, please refer to the "Soft Jaw Customization Form" on page 22 of the catalog.
